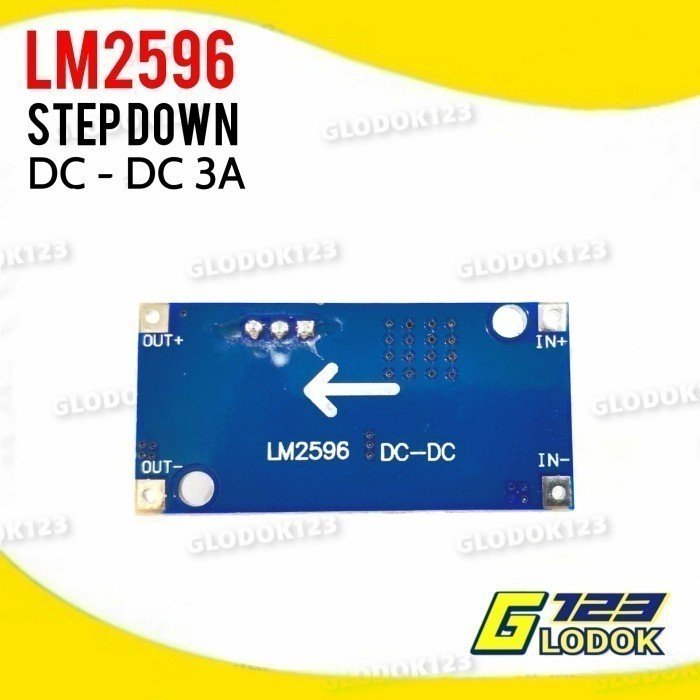

LM2596 3A Adjustable DC-DC Step Down Module Penurun Tegangan DC Buck

DC to DC Stepdown 3A, LM2596 mini module 0.36inch (Red)

** Spesifikasi :
– Input voltage : 3.5V – 35V
– Output voltage : 1.25V – 30V (Adjustable)
– Dropout Voltage : input voltage must be higher than output voltage
– Output Current : 0-3A, 3A Maximum
– Conversion Effeciency : 95% maximum (the higher output voltage, the higher effeciency)
– Size : 41 (L) x 20 (W) x 14 (H) mm (including potentiometers)
– Operating Temperature : -40 to 85(C)
– Voltage Regulation : 2.5%
– Load Regulation : 0.5%
– Output Ripple : 30mV (max)
– Switching Frequency : 150KHz
– Rectification : Non-Synchronous rectification
module properties : non-isolated constant current and voltage module.

isi paket :
1x Stepdown module DC to DC LM2596 3A
