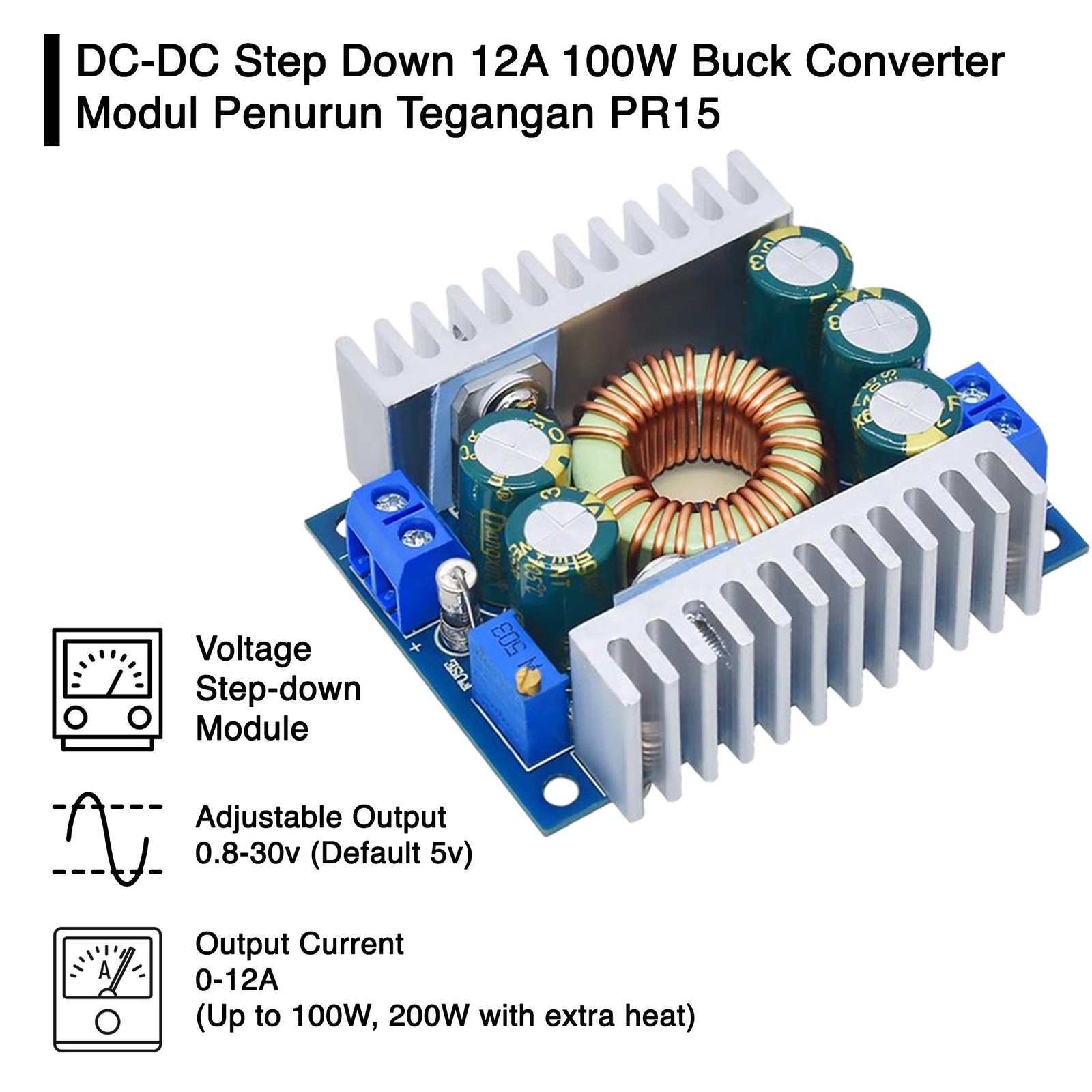

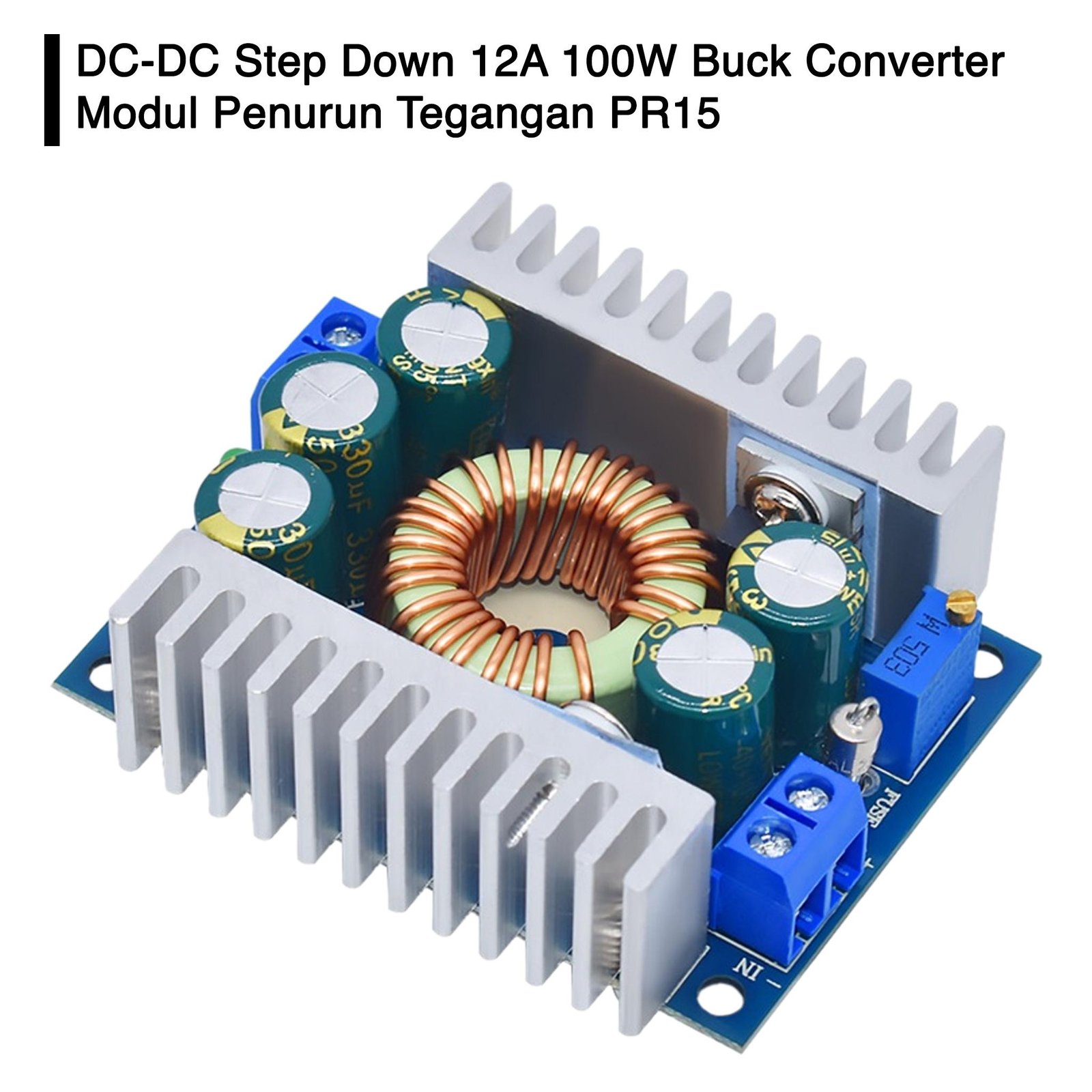

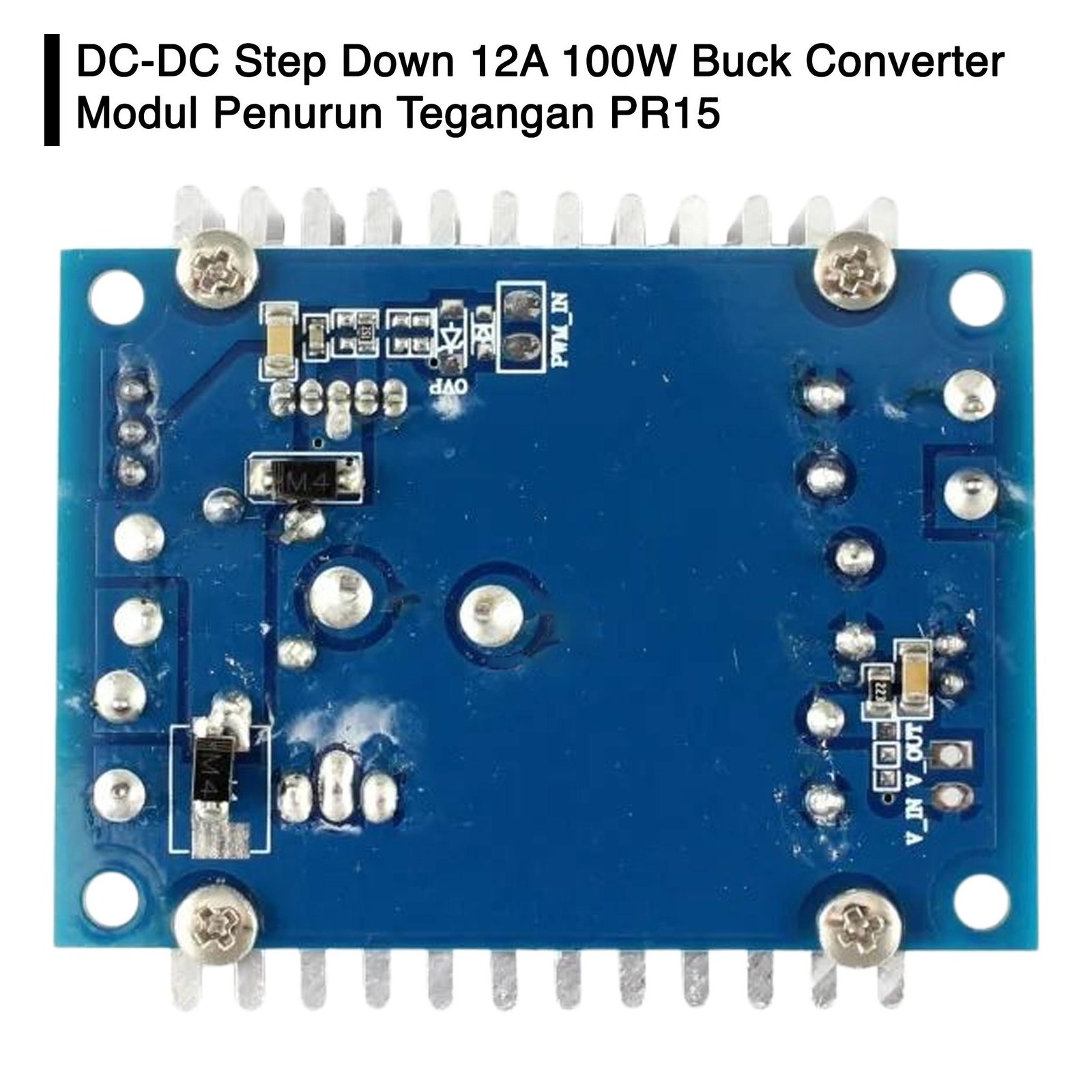

DC DC Step Down 12A 100W Buck Converter Modul Penurun Tegangan PR15

Rp35.400Rp37.400

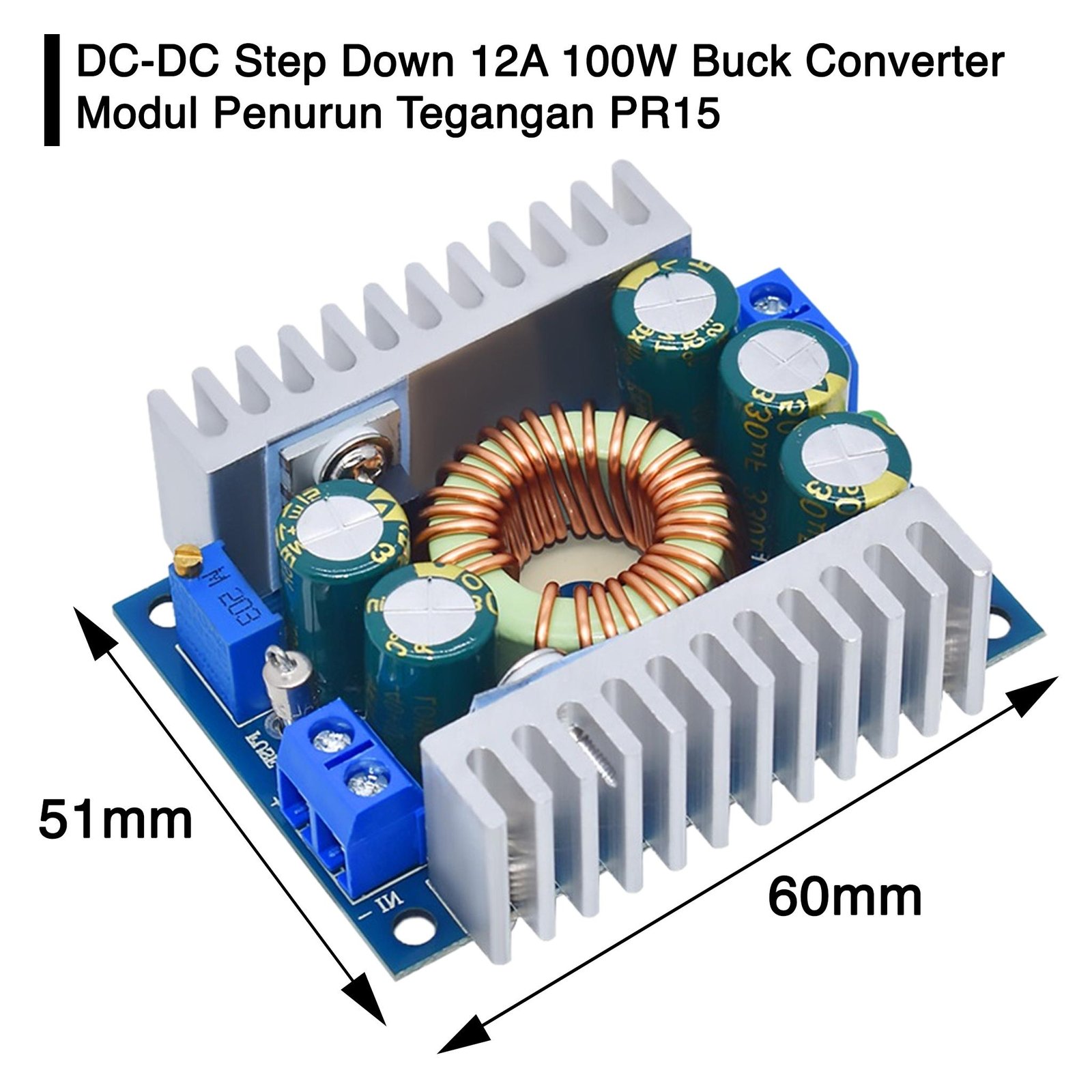

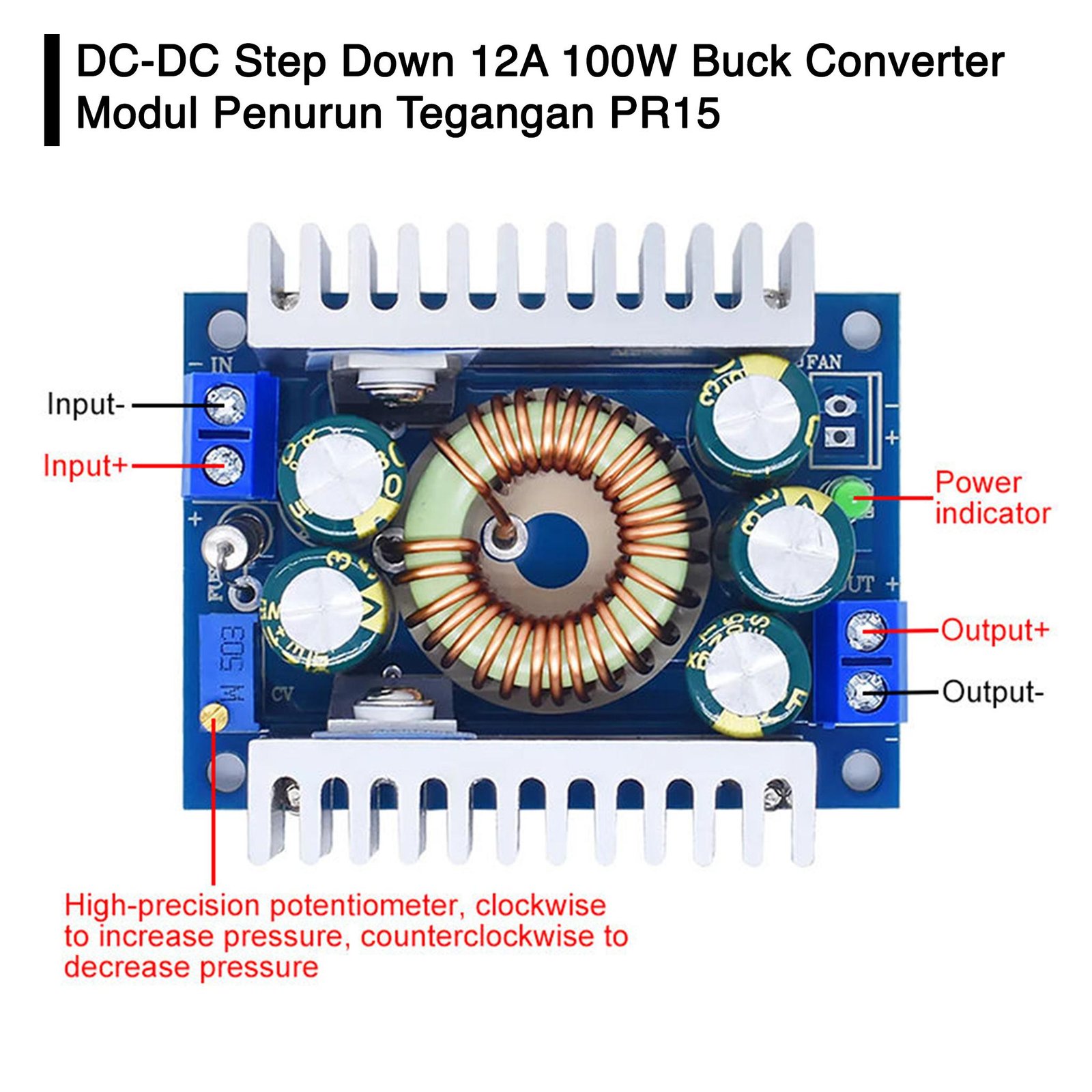

BUBBLE WRAP INI DAPAT MENGURANGI RESIKO BARANG CACAT/RUSAK/PECAH SELAMA DI PERJALANAN KURIR EKSPEDISI PENGIRIMAN. BILA PEMBELI TIDAK MENAMBAHKAN BUBBLE WRAP INI, PENJUAL TIDAK BERTANGGUNG JAWAB ATAS KERUSAKAN BARANG YANG TERJADI AKIBAT KURIR PENGIRIMAN. 12A 100W DC-DC STEP-DOWN NON-ISOLATED MODULE (Penurun Tegangan) – PR15 ** Info Specs : – INPUT : 4.5-30V – Output : 0.8-30V (Default : 5V) – Output Current : 0-12A 100W (up to 200W with extra heat dissipation). – Operating temperature: -40 to + 85 – Operating frequency: 300KHz – Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related). – Short circuit protection: YES (limit current 14A) – Try not to short circuit – Overtemperature protection: (automatically shut off the output after overtemperature). – Input Reverse Polarity Protection: None (if necessary please enter the string into the diode). – Installation: four 3mm screws – Connection: Terminals, solderless, V-IN is the input, V-OUT output, with the housing module wire output. – Module dimensions: length 60mm width 51mm height 22mm ** Actual Data: Input 12V Output 5V / 10A, efficiency 81% Input 12V Output 5V / 6A, efficiency 86% Input 24V output 12V / 8A, efficiency 91% Input 24V output 19V / 6A, efficiency 94%.

  • Packing Bubble
  • Tanpa Bubble
Clear
SKU: N/A Category:

Additional information

Weight 0,15 kg
